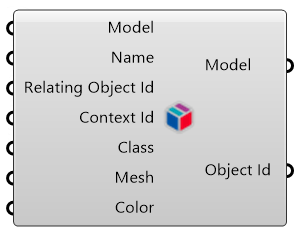

Ifc Object

Create an IFC Object.

Input​

  1. Model*: the IfcOpenShell model.

  2. Name*: a list of names (default is "Hopper Object").

  3. Relating Object Id*: a list of relating object ids, usually the storey, the building etc.

  4. Context Id*: a list of context ids.

  5. Class: a list of IFC classes (default is "IfcBuildingElementProxy").

  6. Mesh: a list of meshes that make up the representation of this object.

    Note: a mesh is not required, an object can exist without a geometric reperesentation.

  7. Color: a list of colors to assign to the objects (if they have a geometric representation).

    Note: if a color is not provided, different software may display the objects with different styling, but it still works.

* Required

Output​

  1. Model: the IfcOpenShell model.

  2. Object Id: the object id.
